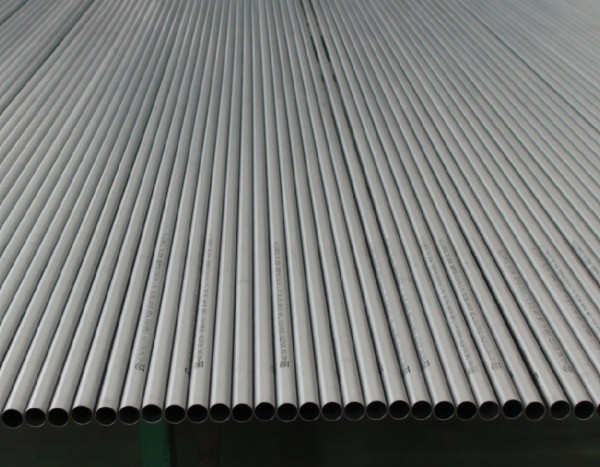

Titanium Tube
HEXON supply titanium seamless tube and welded tube according to ASTM or AMS specification. Our tubes are widely used in chemical plant, power generation, desalination, oil drilling, chlor-alkali, medical equipment, aerospace and automobile due to titanium’s unique natures - good corrosion resistance, high strength and friend-to-human body.
We strictly follow quality requirements per ASTM and AMS, and verify finished tubes by a series of inspection and testing, such as ultrasonic, eddy current, hydraulic, chemical & mechanical, and so on. (see below listing)
Titanium seamless tube and pipe
OD from 5 mm to 219 mm, WT from 0.3 mm to 12.7 mm
Length up to 18000 mm
Produced by cold rolling or extruding
Titanium welded tube and pipe
OD from 10 mm to 40 mm, WT from 0.4 mm to 2 mm, Length up to 25000 mm
OD and Length depends on requirement. WT up to 12 mm (welded from sheet/plate)
Quality assurance & Inspection
▲ Chemical analysis and Mechanical properties
▲ Eddy current testing and Ultrasonic testing
▲ Penetration and Pneumatic testing
▲ Flaring testing and Flattening testing
▲ Bending testing and Hardness testing
▲ Hydrostatic testing
▲ Metallography
** Certificate - in house EN 10204 3.1, third party (such as SGS) inspection
Titanium tube grades
▲ Gr1, Gr2, Gr3
▲ Gr5 (Ti-6Al-4V)
▲ Gr7 (Ti-0.2Pd)
▲ Gr9 (Ti-3Al-2.5V)
▲ Gr12 (Ti-0.3Mo-0.8Ni)
▲ Gr23 (Ti-6Al-4V ELI)
Specification
▲ ASME SB338
▲ ASTM B338
▲ ASTM B861
▲ ASTM B862
▲ ASTM F67, F136
▲ AMS 4942, 4943, 4944, 4945
Applications
▲ Heat exchanger and condenser
▲ Desalination
▲ Chlor-alkali
▲ Electroplating
▲ Power generation
▲ Oil drilling
▲ Hydraulic system for automobile and aircraft
▲ Medical equipment
▲ Bicycle frame
